current location：home page > product > Side channel Blowers > RBG Two Stage Side Channel Blowers > Airhank RBG 820 011C
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
28.0Δ/16.2Y A
Vacuum suction:
-430 mbar
Rated blowing force:
660 mbar
Motor speed:
2800 min-1
In and out caliber:
G 2 ?"
Weight:
123 Kg
Noise（about）:
74 dB(A)
Airhank RBG 820 011C
Data download
Data download

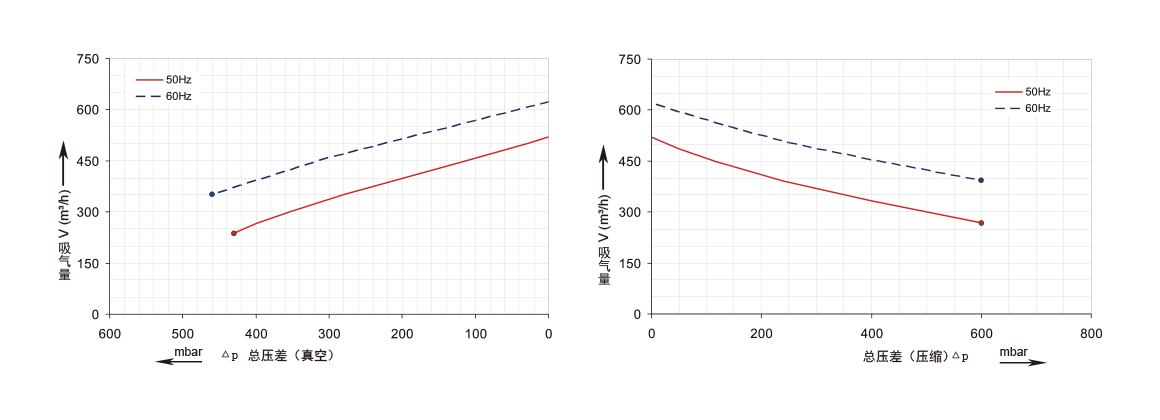

Characteristic curve
Performance data
| Technical parameter | RBG 820 011C | |
|---|---|---|
| Maximum flow | m3/h | 520 |
| Vacuum suction | mbar | -430 |
| Vacuum suction | mbar | 660 |
| Frequency | Hz | 50 |
| Voltage | V | △345-415/Y600-720 |
| Current consumption | A | 28.0△/16.2Y |
| Power | kW | 11 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 123 |
| Noise value | dB (A) | 74 |
Technical drawings
