current location：home page > product > Side channel Blowers > RBG Two Stage Side Channel Blowers > Airhank RBG 920 12D5C
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
28.0Δ/16.2Y A
Vacuum suction:
-300 mbar
Rated blowing force:
370 mbar
Motor speed:
2800 min-1
In and out caliber:
G4
Weight:
120 Kg
Noise（about）:
74 dB(A)

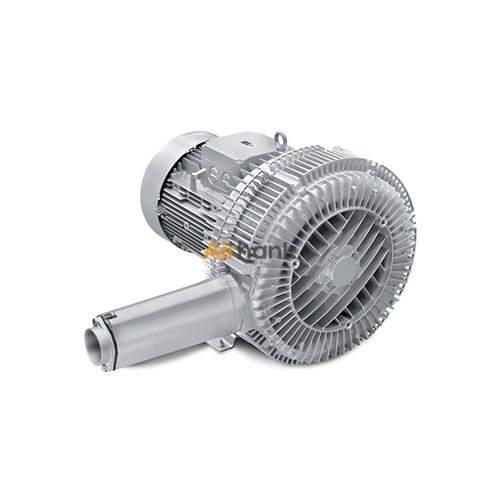

Airhank RBG 920 12D5C
Data download
Data download
Characteristic curve
Performance data
| Technical parameter | RBG 920 12D5C | |
|---|---|---|
| Maximum flow | m3/h | 1110 |
| Vacuum suction | mbar | -300 |
| Rated blowing force | mbar | 370 |
| Frequency | Hz | 50 |
| Voltage | V | △345-415/Y600-720 |
| Current consumption | A | 28.0△/16.2Y |
| Power | kW | 12.5 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 120 |
| Noise value | dB (A) | 74 |
Technical drawings
