current location：home page > product > Side channel Blowers > RBG Single Stage Side Channel Blowers > Airhank RBG 230 0D4B
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
2.6Δ/1.5Y A
Vacuum suction:
-120 mbar
Rated blowing force:
130 mbar
Motor speed:
2800 min-1
In and out caliber:
G 1 ?" / G 1 ?"
Weight:
11 Kg
Noise（about）:
54 dB(A)

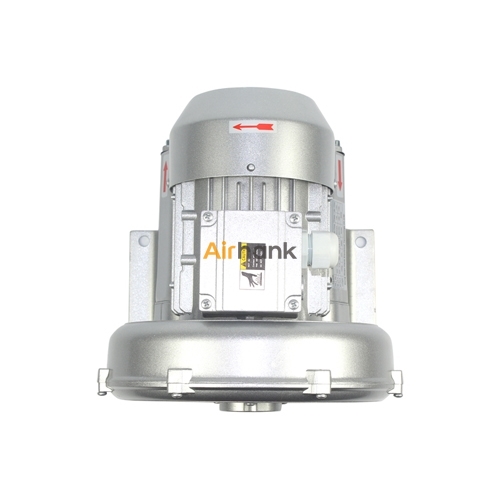

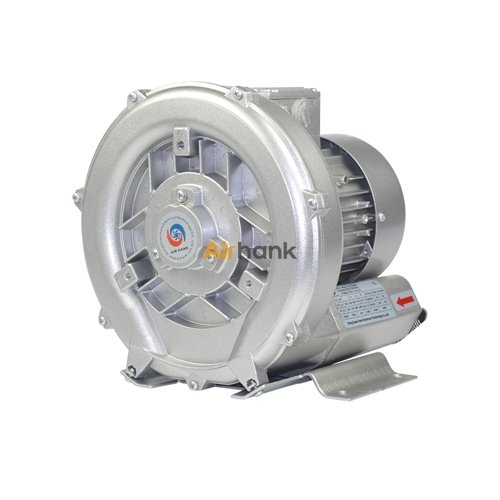

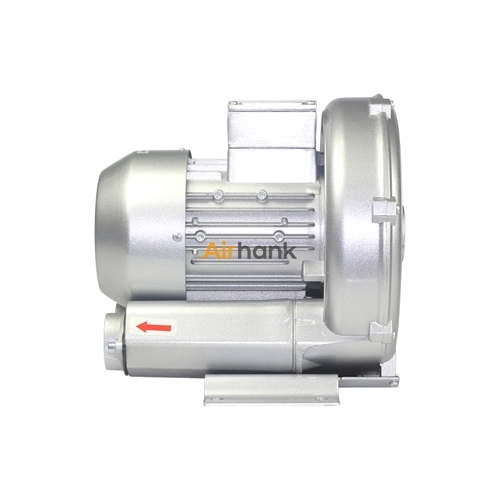

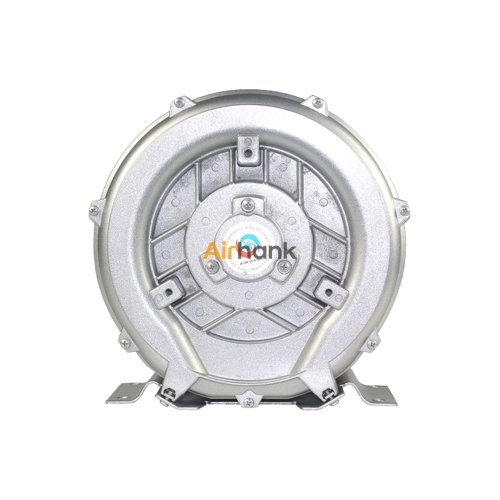

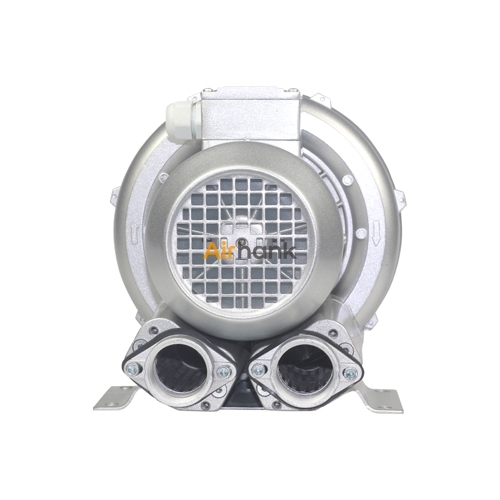

Airhank RBG 230 0D4B
Data download
Data download

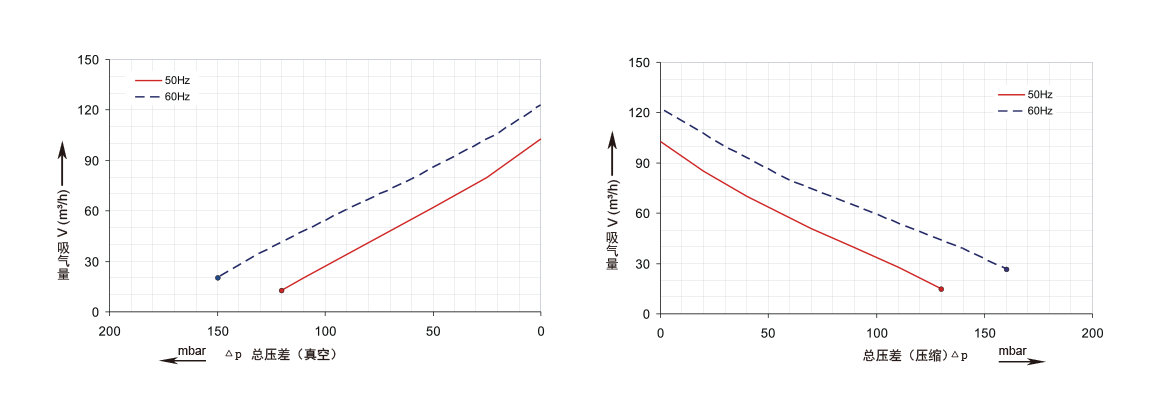

Characteristic curve
Performance data
| Technical parameter | RBG 230 0D4B | |
|---|---|---|
| Maximum flow | m3/h | 105 |
| Vacuum suction | mbar | -120 |
| Rated blowing force | mbar | 130 |
| Frequency | Hz | 50 |
| Voltage | V | △200-240/Y345-415 |
| Current consumption | A | 2.6△/1.5Y |
| Power | kW | 0.4 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 11 |
| Noise value | dB (A) | 54 |
Technical drawings
