current location：home page > product > Side channel Blowers > RBG Single Stage Side Channel Blowers > Airhank RBG 510 1D6B
Input voltage:
Rated power:
Maximum flow:
Power frequency:
50 Hz
Rated current:
7.5△/4.3Y A
Vacuum suction:
-200 mbar
Rated blowing force:
190 mbar
Motor speed:
2800 min-1
In and out caliber:
G2
Weight:
21 Kg
Noise（about）:
64 dB(A)
Airhank RBG 510 1D6B
Data download
Data download

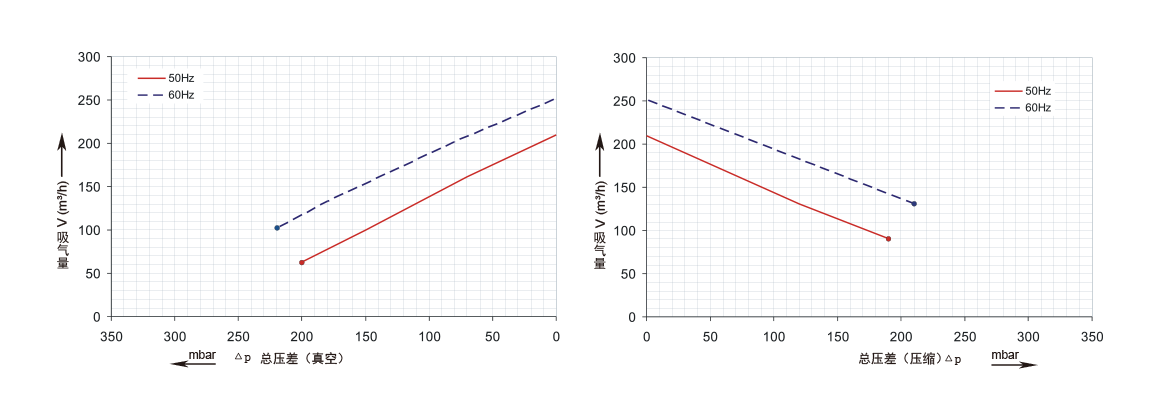

Characteristic curve
Performance data
| Technical parameter | RBG 510 1D6B | |
|---|---|---|
| Maximum flow | m3/h | 210 |
| Vacuum suction | mbar | -200 |
| Rated blowing force | mbar | 190 |
| Frequency | Hz | 50 |
| Voltage | V | △200-240/Y345-415 |
| Current consumption | A | 7.5△/4.3Y |
| Power | kW | 1.6 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 21 |
| Noise value | dB (A) | 64 |
Technical drawings
