Current location：Home page > Product > High speed turbine blower > HANK300-22
HANK300-22
Data download
Data download

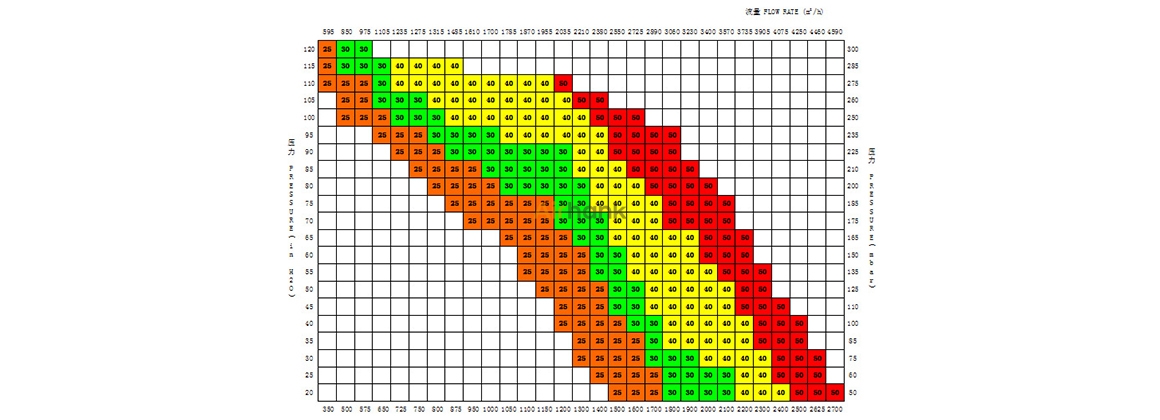

Characteristic curve
Performance data
| Technical parameter | HANK300-22 | |
|---|---|---|
| Maximum flow | m3/h | 3700 |
| Vacuum suction | mbar | -265 |
| Rated blowing force | mbar | 290 |
| Frequency | Hz | 50 |
| Voltage | V | 380 |
| Current consumption | A | 38.9 |
| Power | kW | 22 |
| Motor speed | min-1 | 2800 |
| Weight | Kg | 224 |
| Noise value | dB (A) | 62 |

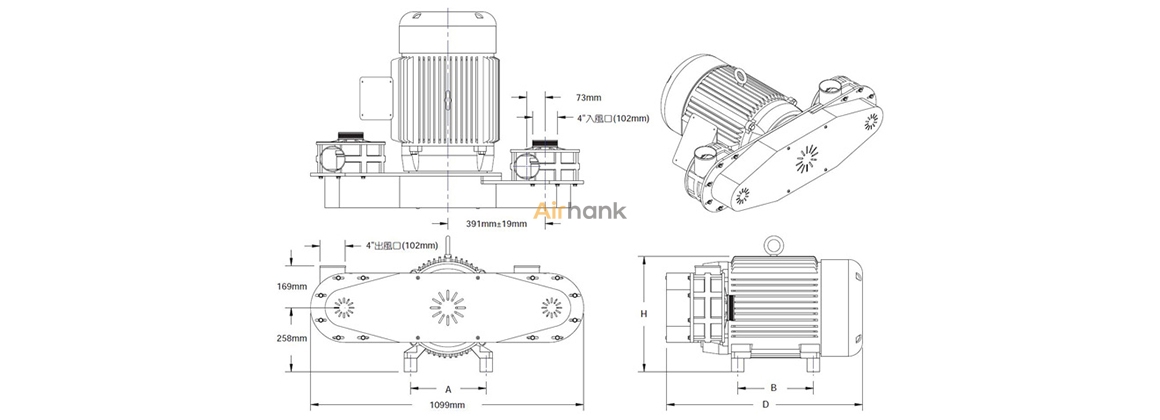

Technical drawings
